UniCom Basic

4.5t or 5.5t jetvac combination unit
Tailor-made all-around jetting/suction unit for urban areas and restricted access sites.

Navigation

Suitable for almost any commercial vehicle

Operating range up to 450mm
1.500 litres (1.000 litres waste / 500 litres clean)
Honda petrol (18 kW / 24 hp)
1.200 kg

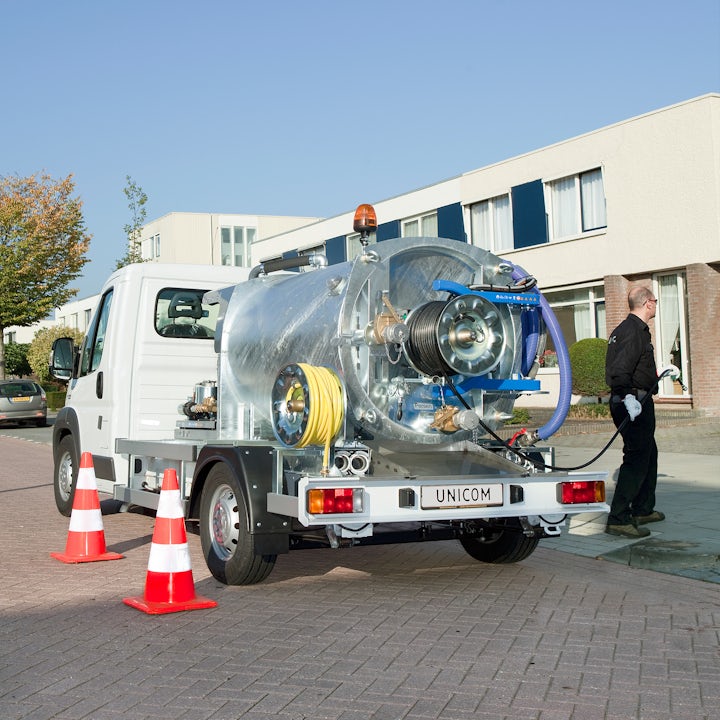

With a contemporary design, the UniCom Basic is a true all-around jetvac combination unit ideal for high-pressure jetting and suction in city centres and in hard-to-reach places. House connections, sewers, grease pits and street gullies can be efficiently unblocked and cleaned with the UniCom. This modular combination unit can be fully customized with the specifications and options you require.

Customisable design

The UniCom has a tank capacity of 1,500 litres - divided into 1,000 litres of waste and 500 litres of clean water - but can also be supplied with a different tank distribution depending on customer needs. The UniCom can be equipped with a wide range of options: from a radio remote control to a fully-hydraulic suction hose reel, the choice is yours. The Basic configuration features a 24HP Honda petrol engine and a simple hood above the engine and pump compartment. The tank is galvanized but can be painted in any colour to match company branding. All components of the UniCom are easily accessible for repair and maintenance work.

Compact and lightweight

Due to its compact design, the UniCom Basic is easy to mount on a 4.5 or 5.5-tonne chassis. The unit can also be mounted on a trailer or in a closed commercial vehicle. Thanks to its small dimensions, the UniCom moves effortlessly through busy city traffic, making it ideal for operation in urban and built-up locations.

Fully-equipped

Whichever version you choose, the UniCom is ready to get your job done professionally. The tank door swings fully open, allowing operators to easily clean and unload the tank. The UniCom Basic is supplied with 60 metres of Rioned's NW13 high-pressure hose, two lengths of 3" suction hose and nozzles ready for immediate operation.

Photogallery

Specification & documentation

Default Specifications

Chassis	Trailer, 4.5 or 5.5 tons
Dimensions (lxwxh)	3,000 x 1,740 x 1,450 (excluding chassis)
Empty weight	From 1,200 kg (depending on chassis)
Tank capacity	1,500 litres (1,000 litres waste / 500 litres clean)
Movable partition	No
Wastewater level indicator	3" sight glasses
Tank material	Steel
Tank opening	Fully opening rear door, manual
Connections	3" inlet, 3" outlet
Motor/drive	Honda petrol (18 kW / 24 hp)
HP pump Rioned/Speck	140 bar / 60 lpm \| 2000 psi / 13 gpm 200 bar / 45 lpm \| 3000 psi / 10 gpm
Pump protection	Run-dry protection with overrun possibility
Vacuum pump	MEC 5000 (capacity 5,000 lpm, 300m3 per hour, 0.8 bar suction / 0.49 bar discharge) or GD SLS54V, air-cooled, oil-lubricated (capacity 5.400 lpm, 300m3/h, 0.8 bar suction / 0.49 bar discharge)
HP hose reel	60 metres NW13, 180˚ swivelling
Suction reel	Optional
Filling reel	Optional
Motor and pump housing	Cover
Control	Rioned eControl+
Remote control	RioMote 7-Channel remote control system optional
Storage	Storage space for hoses in beams under the tank
Safety	Work light, beacon and LED warning lights optionally available
Standard accessories	Nozzles, 2 x 3 metre 3" suction hoses

Optional specifications

RioPulse pulsator system	Pump adjustment to send the water through the hose in pulses
RioMeter hose counter	RioMeter hose counter for displaying metres of hose in the pipe
Anti-freeze system	30-litre anti-freeze tank with circulation option to protect the high-pressure pump
Extra drain valve	Drain valve to empty the water tank quickly
Extra storage space	May depend on the chassis
