UrbanJet

Van-Pack Drain Jetting Machine
The new-specification machine for domestic and commercial cleaning in pipelines up to 350mm.

Navigation

The compact, high-performance drain jetter

Operating range up to 350 mm
600 litres water tank
Kubota diesel D1105 or Kubota petrol water-cooled WG972
From 440 kg

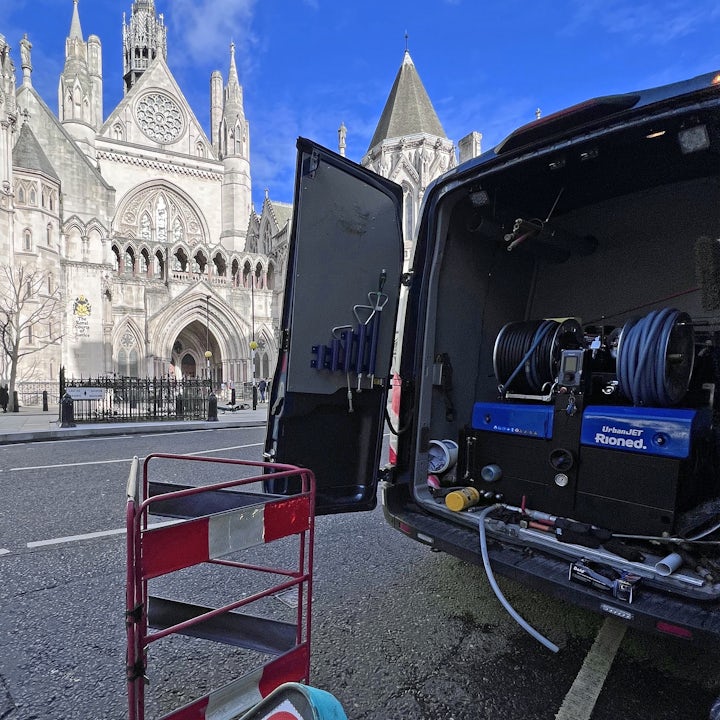

The new lightweight UrbanJet is designed to fit most compact 3.5t vans such as the VW Transporter, Ford Transit, Vauxhall Movano, MB Vito or similar sized vans. The new UrbanJet is ideally suited for unblocking of house connections and work in domestic and light commercial areas. The UrbanJet is also available with an industrial, water-cooled diesel or petrol engine to service pipes up to 350 mm.

Everything you need

The UrbanJet is supplied as a complete package, including a hydraulically driven high-pressure hose reel with 60 metres MaxFlow lightweight jetting hose and filling reel with 35 metres of NW 19 hose. The optionally included 5 or 7-channel radio remote control allows single-person operation and allows the user to control the pump (on/off), engine revs and emergency stop.

The run-dry function for low water pump protection has an override facility allowing the operator to use the hydraulic system to retrieve the hose from the drain. The UrbanJet is available with various water tanks and can be optionally equipped with a pivoting reel for maximum flexibility.

eControl+ interface

Despite its affordable price, the new UrbanJet is fitted with our award winning eControl+ user interface with LCD display. It includes many useful features and provides a full machine status at a glance. The eControl+ system also provides the user with machine error information for quick fault diagnostics.

Photogallery

Specifications & documentation

Default Specifications

Operating range

Max 350 mm

Motor/drive

Kubota diesel D1105 (18.5 kW / 25 pk) or Kubota petrol industrial WG972 (23 kW / 30 pk)

Fuel tank

30 liter

HP pump Rioned/Speck

Kubota diesel D1105
140 bar / 70 lpm \| 2000 psi / 18,5 gpm
200 bar / 45 lpm \| 3000 psi / 10 gpm
Kubota petrol industrial WG972
200 bar / 55 lpm \| 3000 psi / 12 gpm

Pump protection

Run-dry protection with overrun possibility

Pressure regulation

Type Speck with automatic bypass

Water tank

600 litres (2 x 300 litres)

Filling reel

35 metres NW 19

HP hose

60 metres NW 13

HP reel

Fixed, hydraulically driven

Control

Rioned eControl+

Weight

From 440 kgs

Dimensions (lxwxh)

1,305 x 1,240 x 1,195 mm

Nozzles

2 x 1/2" (1 open, 1 blind)

Colour

Blue cover, black metal frame

Optional specifications

Remote control	RioMote 5 or 7-Channel remote control system
RioPulse Pulsator	Pump adjustment to send the water through the hose in pulses
Anti-freeze tank	30 litre anti-freeze tank with circulation system to protect the high-pressure pump
Extra Water Tanks	2 x 400 litres or 4 x 300 litres water tanks instead of 2 x 300 litres
Extra HP hose length	80 metres NW 13
Fixed suction venturi	Suction device for filling the tanks with surface water
Fixed hydrant connection	Fixed hydrant connection for rapidly filling the tank
HP reel	180° swivelling, hydraulically driven
Second HP reel	Second HP reel instead of filling reel
RioFree mechanical freewheel HP reel	RioFree mechanical freewheel for uncoiling without resistance (only in combination with hydraulic reel)
Electric water level control	Automatic sysytem to open and close the filling line of your machine if the water has reached its minimum or maximum level in the tank
